Precise, rigid CN Cytec MILLING HEADS

CyMill

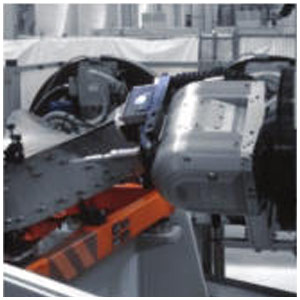

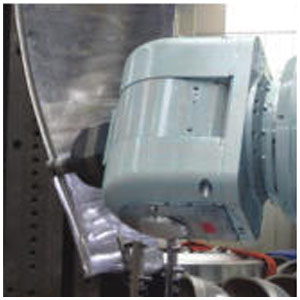

The digital direct drive milling heads CyMill that are used in the 4th or 5th axis are well suited to fast machine tools. Note also the possibility of higher powers related to its compact nature.

Significant speed and dynamic performance thanks to the patented "Direct Drive" technology. Maintenance-free through the use of mechanical elements without frictions. Significant acceleration and braking levels allow safer and more precise settings related to the 4th and 5th axis.

Direct drive numerical milling heads CyMill

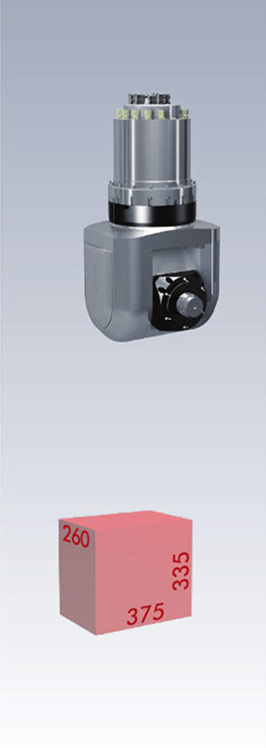

Machining Equipment - Milling Heads Cytec NANO

NANO
Specs
A/C axis:
150/300(Max)
/600Nm (reg.)
Power: 15kw,24Nm, 24000rpm
Tool: HSK A63
Weight: 195 kg

Machining Equipment - Milling Heads Cytec S8

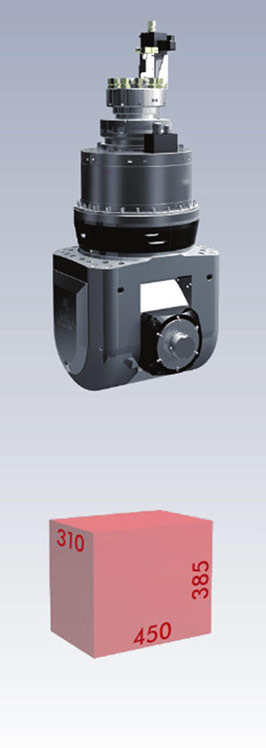

S8
Specs
A/C axis:
315/340(Max)
/1500nM (reg.)
Power: 18kw,56Nm, 18000rpm
Tool: HSK A63
Weight: 350 kg

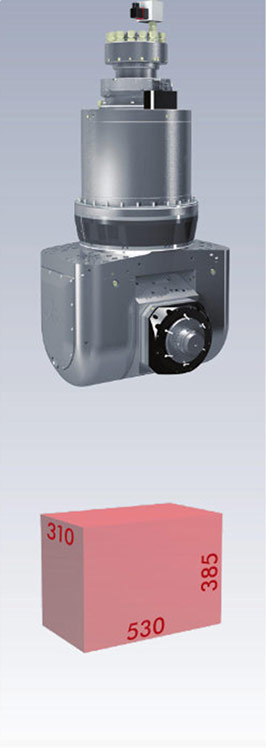

Machining Equipment - Milling Heads Cytec S8 XL

S8 XL
Specs
A/C axis:
550/1000(Max)
/2400nM (reg.)
Power: 40kw,67Nm, 24000rpm
Tool: HSK A63
Weight: 450 kg

Machining Equipment - Milling Heads Cytec M21

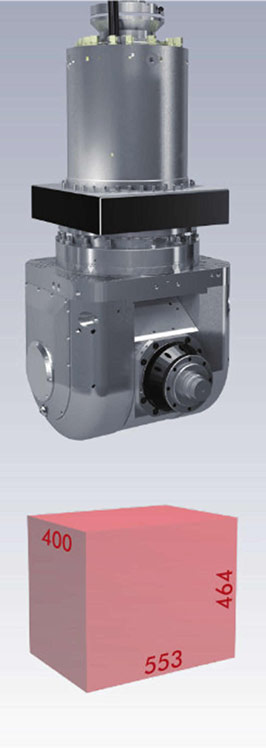

M21
Specs
A/C axis:
700/1200 (Max)
/4000nM (reg.)
Power: 34kw,170Nm, 12000rpm
Tool: HSK A100 (HSK A63/24000rpm)
Weight: 750 kg

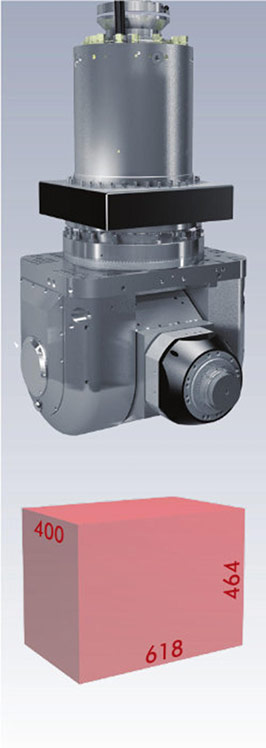

Machining Equipment - Milling Heads Cytec M21 XL

M21 XL
Specs
A/C axis:
1000/2000(Max)
/500nM (reg.)
Power: 40kw,200Nm, 15000rpm
Tool: HSK A100
Weight: 900 kg

Machining Equipment - Milling Heads Cytec G30

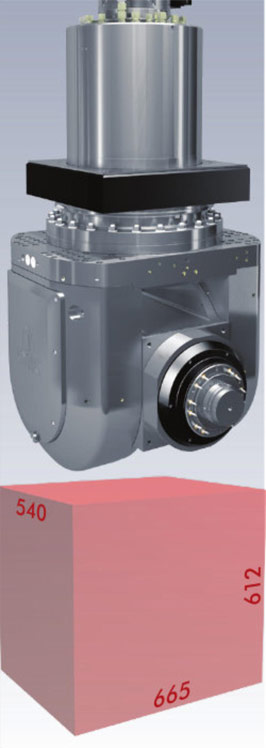

G30
Specs
A/C axis:
1500/3000(Max)
/7000nM (reg.)
Power: 42kw,400Nm, 8000 up to 15000 rpm
Tool: HSK A100
Weight: 1200 kg

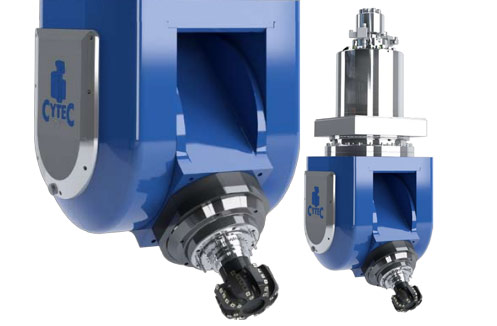

View our new 2 AXIS NC MILLING HEADS

MILLING HEADS WITH NEW GENERATION TORQUE DRIVES.... EXTENDED POWER DENSITY

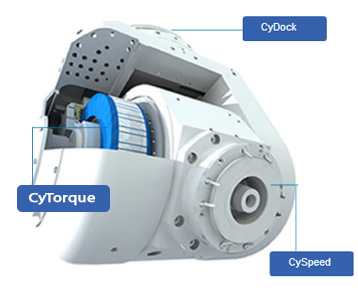

Extended dynamic and power The core of the direct drive milling heads is the new torque motor generation: The sophisticated cooling technology of the coils offers 30% more power, very high efficiency and dynamic. Using these advantages, CyTec engineers increase power and torque of the milling head for high efficient simultaneous machining at the same time. As a result, it is possible to reach a new level of high dynamic milling.

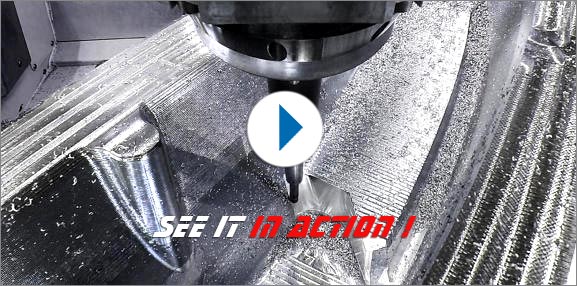

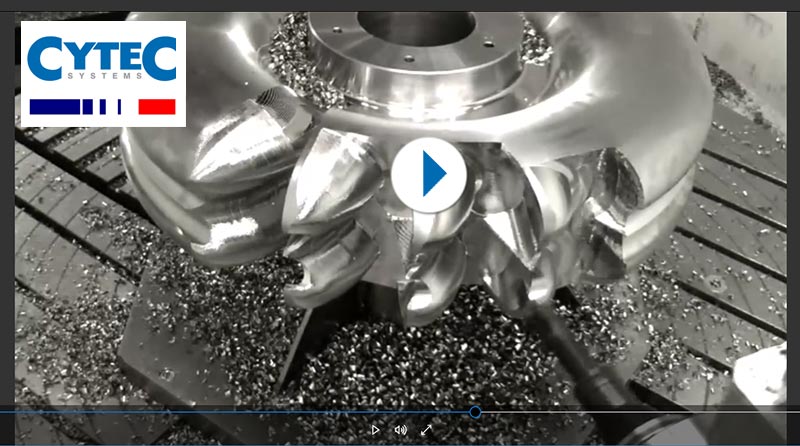

» View Cytec System Video CyMill in action!
