CYTEC ROTARY DIGITAL PLATFORMS

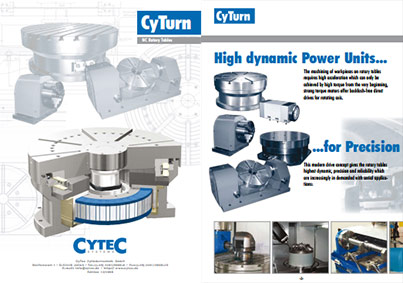

CyTurn

Horizontal rotary tables /Vertical rotary tables/ Spindle Tables/ Rotary Tilt Tables/ Grinding Tables

Cytec Equipement pour Machine Outils Plateaux Rotatifs

High dynamic Power Units... The machining of workpieces on rotary tables requires high acceleration, which can only be achieved by high torque from the very beginning. Strong torque motors offer backlash-free direct drives for rotating axis. ...for Precision This modern drive concept gives the rotary tables the highest dynamic, precision and reliability which are increasingly in demand with serial applications.

CYTEC HORIZONTAL ROTARY TABLES

200mm - 1800mm Plates
Cytex Horizontal rotary table CRT/200/H
Horizontal rotary table
CRT/200/H
  • Face plate diameter: 200mm
  • Torque: 106Nm
  • Speed: 2000 rpm
  •

PDF File

Cytex Horizontal rotary table CRT/400/H
Horizontal rotary table
CRT/400/H
  • Face plate diameter: 400mm
  • Torque: 193Nm
  • Clamping torque: 1000Nm
  • Speed: 350 rpm

PDF File

Cytex Horizontal rotary table CRT/510/H
Horizontal rotary table
CRT/510/H
  • Face plate diameter: 510mm
  • Torque: 580Nm
  • Clamping torque: 2750Nm
  • Speed: 110 rpm

PDF File

Cytex Horizontal rotary table CRT/600/H
Horizontal rotary table
CRT/600/H
  • Face plate diameter: 600mm
  • Torque: 580Nm
  • Clamping torque: 2750Nm
  • Speed: 110 rpm

PDF File

Cytex Horizontal rotary table CRT/600/H/ZP
Horizontal rotary table
CRT/600/H/ZP
  • Face plate diameter: 600mm
  • Torque: 580Nm
  • Clamping torque: 2750Nm
  • Speed: 110 rpm

PDF File

Cytex Horizontal rotary table CRT/660/H
Horizontal rotary table
CRT/660/H
  • Face plate diameter: : 660mm
  • Torque: 740Nm
  • Clamping torque: 3700Nm
  • Speed: 80 rpm

PDF File

Cytex Horizontal rotary table CRT/750/H
Horizontal rotary table
CRT/750/H
  • Face plate diameter: 750mm
  • Torque: 580Nm
  • Clamping torque: 6000Nm
  • Speed: 110 rpm

PDF File

Cytex Horizontal rotary table CRT/1000/H
Horizontal rotary table
CRT/1000/H
  • Face plate diameter: 1000mm
  • Torque: 1470Nm
  • Clamping torque: 10000Nm
  • Speed: 40 rpm

PDF File

Cytex Horizontal rotary table CRT/1800/H
Horizontal rotary table
CRT/1800/H
  • Face plate diameter: 1800mm
  • Torque: 1470Nm
  • Clamping torque: 10000Nm
  • Speed: 40 rpm

PDF File

CYTEC PLATES FOR PALLET CHANGE

Horizontal rotary table for pallet change CRT/630/H
Horizontal rotary table
CRT/630/H
  • Face plate diameter: 500 (630)mm
  • Torque: 570Nm
  • Clamping torque: 5000Nm
  • Speed: 115 rpm

PDF File

Horizontal rotary table for pallet change CRT/800/H
Horizontal rotary table
CRT/800/H
  • Face plate diameter: 800mm
  • Torque: 1700Nm
  • Clamping torque: 1000Nm
  • Speed: 80 rpm

PDF File

CYTEC ROTARY TILT TABLES

Cytec Rotary tilt table CRT/250/HV
Rotary tilt table
CRT/250/HV
  • Rotary Axis:
  • Table Diameter: 250mm
  • Torque: 155Nm
  • Clamping torque: 1000Nm
  • Speed: 500 rpm
  • Swivel Axis:
  • Torque: 155Nm
  • Clamping torque: 1000Nm
  • Speed: 500 rpm

PDF File

Cytec Rotary tilt table CRT/390/HV
Rotary tilt table
CRT/390/HV
  • Rotary Axis:
  • Table Diameter: 390mm
  • Torque: 760Nm
  •
  • Speed: 1000 rpm
  • Swivel Axis:
  • Torque: 2700Nm
  • Clamping torque: 6000Nm
  • Speed: 30 rpm

PDF File

Cytec Rotary tilt table CRT/400/HVP Grande Torque
Rotary tilt table
CRT/400/HV-Pt
  • Rotary Axis:
  • Table Diameter: 400mm
  • Torque: 330Nm
  • Clamping torque: 1000Nm
  • Speed: 500 rpm
  • Swivel Axis:
  • Torque: 2100Nm
  • Clamping torque: 2000Nm
  • Speed: 60 rpm

PDF File

Cytec Rotary tilt table CRT/400/HV-Ps Grande Vitesse
Rotary tilt table
CRT/400/HV-Ps
  • Rotary Axis:
  • Table Diameter: 400mm
  • Torque: 220Nm
  • Clamping torque: 1000Nm
  • Speed: 1200 rpm
  • Swivel Axis:
  • Couple: 2100Nm
  • Clamping torque: 2000Nm
  • Speed: 60 rpm

PDF File

Cytec Rotary tilt table CRT/800 (600)/HVt Grande Torque
Rotary tilt table
CRT/800 (600)/HVt
  • Rotary Axis:
  • Table Diameter: 800 (600) mm
  • Torque: 1000Nm
  • Clamping torque: 4000Nm
  • Speed: 300 rpm
  • Swivel Axis:
  • Torque: 3900Nm
  • Clamping torque: 10000Nm

PDF File

Cytec Rotary tilt table CRT/800 (660)/HVs Grande Vitesse
Rotary tilt table
CRT/800 (600)/HVs
  • Rotary Axis:
  • Table Diameter: 800 (600) mm
  • Torque: 750Nm
  • Clamping torque: 4000Nm
  • Speed: 800 rpm
  • Swivel Axis:
  • Torque: 3900Nm
  • Clamping torque: 10000Nm

PDF File

Cytec Rotary tilt table CRT/660(800)/HVt Grande Torque
Rotary tilt table
CRT/660 (800)/HVt
  • Rotary Axis:
  • Table Diameter: 660 (800) mm
  • Torque: 1000Nm
  • Clamping torque: 3700Nm
  • Speed: 300 rpm
  • Swivel Axis:
  • Torque: 1500Nm
  • Clamping torque: 6000Nm

PDF File

Cytec Rotary tilt table CRT/660 (800)/HVs Grande Vitesse
Rotary tilt table
CRT/660 (800) /HVs
  • Rotary Axis:
  • Table Diameter: 660 (800) mm
  • Torque: 750Nm
  • Clamping torque: 6000Nm
  • Speed: 800 rpm
  • Swivel Axis:
  • Torque: 1500Nm
  • Clamping torque: 6000Nm

PDF File

Cytec Rotary Tilt Plate CRT/525/HV
Rotary Tilt Plate
CRT/525/HV
  • Rotary Axis:
  • Table Diameter: 525mm
  • Torque: 580Nm
  • Clamping Torque: 3000Nm
  • Speed: 110 rpm
  • Swivel Axis:
  • Torque: 1470Nm
  • Clamping Torque: 80000Nm
  • Speed: 20 rpm

DPF File

Rotary Tilt Plate
CyTec NC Rotary Tables
